316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net

Name: 316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net
Brand: X MESH
Price: 2.35 USD

China 316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net wholesale

Brand Name : X MESH

Model Number : X MESH-Cable Webnet-003

Certification : ISO9001:2015

Place of Origin : Hebei P.R. China.

MOQ : 10pcs

Price : USD2.35-3.58/m2

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000m2/week

Delivery Time : 5-7days

Packaging Details : Wrapped with plastic film and wooden case packing

Product name : Stainless Steel Cable Mesh

Material : Stainless Steel 316L

Wire Rope : 3mm

Rope Constructions : 7 X 19

Mesh Orientation : Horizontal

Mesh Shape : Diamond

Mesh Angle : 60 Degree

Color : Silver

Feature : Extensive Use

Packing : Pallet or Wooden Case Packing

Contact Now

Product Description

316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net

Stainless steel rope mesh is made from high tensile stainless steel 304, 316, 304L and 316L. Stainless steel rope mesh can be divided into two kinds according to the combination method: stainless steel knotted rope mesh and stainless steel ferrule rope mesh. The former is combined by the ropes winded together. And the latter is combined by the ferrules which are made up from the same grade stainless steel.

Product Introduction

Product Name	Decoration Rope Wire Mesh
Material	SUS302, 304, 316, 316L
Wire diameter	1.0mm-3.0mm
Structure	77,719.
Mesh opening size	1"1",2"2",3"3",4"4".
Feature	Handle Made Environmental Protection Extensive Use Premium Quality Direct from Factory Product Life Cycle Lifetime Support
Packing	The rope mesh will be rolled and packed into the P.P. woven bags or wooden crates.

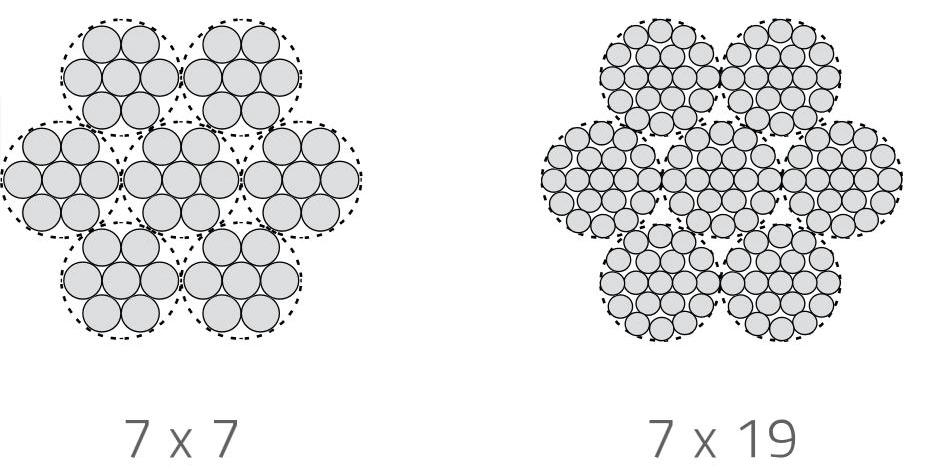

Structure

316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net

Weaving Method

Stainless steel rope net is a net-like product processed by stainless steel rope according to certain methods and procedures. The common ones are mainly stainless steel buckle rope net and stainless steel braided rope net. The stainless steel buckle rope net is extruded and woven by stainless steel wire rope and stainless steel buckle.The steel buckle is mainly made of stainless steel buckle, and there are also aluminum buckles and copper buckles for customers to choose from.The stainless steel rope mesh woven net is formed by cross-weaving with a plurality of steel wire ropes, and the net is durable and unbreakable, and the bearing capacity is large.

Measurement

316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net

Specification

316 316L Stainless Steel Flexible Wire Mesh Netting For Bird Aviary Safety Net

Knotted mesh:

Code	Rope Construction	Rope Diameter		Opening Size		Breaking Force
Code	Rope Construction	Inch	mm	Inch	mm	KN
BR-01	7 × 19	1/8	3.2	4.7" × 4.7"	120 × 120	7.38
BR-02	7 × 19	1/8	3.2	4" × 4"	102 × 102	7.38
BR-03	7 × 19	1/8	3.2	3.6" × 3.6"	90 × 90	7.38
BR-04	7 × 19	1/8	3.2	3" × 3"	76 × 76	7.38
BR-05	7 × 19	1/8	3.2	2" × 2"	51 × 51	7.38
BR-06	7 × 7	3/32	2.4	4" × 4"	102 × 102	4.18
BR-07	7 × 7	3/32	2.4	3.6" × 3.6"	90 × 90	4.18
BR-08	7 × 7	3/32	2.4	3" × 3"	76 × 76	4.18
BR-09	7 × 7	3/32	2.4	2.4" × 2.4"	60 × 60	4.18
BR-10	7 × 7	3/32	2.4	2" × 2"	51 × 51	4.18
BR-11	7 × 7	5/64	2	3" × 3"	76 × 76	3.17
BR-12	7 × 7	5/64	2	2.4" × 2.4"	60 × 60	3.17
BR-13	7 × 7	5/64	2	2" × 2"	51 × 51	3.17
BR-14	7 × 7	5/64	2	1.5" × 1.5"	38 × 38	3.17
BR-15	7 × 7	1/16	1.6	3" × 3"	76 × 76	2.17
BR-16	7 × 7	1/16	1.6	2" × 2"	51 × 51	2.17
BR-17	7 × 7	1/16	1.6	1.5" × 1.5"	38 × 38	2.17
BR-18	7 × 7	1/16	1.6	1.2" × 1.2"	30 × 30	2.17
BR-19	7 × 7	1/16	1.6	1" × 1"	25 × 25	2.17
BR-20	7 × 7	3/64	1.2	2" × 2"	51 × 51	1.22
BR-21	7 × 7	3/64	1.2	1.5" × 1.5"	38 × 38	1.22
BR-22	7 × 7	3/64	1.2	1.2" × 1.2"	30 × 30	1.22
BR-23	7 × 7	3/64	1.2	1" × 1"	25 × 25	1.22
BR-24	7 × 7	3/64	1.2	0.8" × 0.8"	20 × 20	1.22

Specifications can be customized according to customer needs.

Ferruled mesh:

Code	Rope Construction	Rope Diameter		Aperture	Breaking Force
Code	Rope Construction	Inch	mm	mm	kN
BR-01	7 × 19	1/8	3.2	120 × 208	7.38
BR-02	7 × 19	1/8	3.2	100 × 173	7.38
BR-03	7 × 19	1/8	3.2	90 × 156	7.38
BR-04	7 × 7	3/32	2.4	100 × 173	4.18
BR-05	7 × 7	3/32	2.4	90 × 156	4.18
BR-06	7 × 7	3/32	2.4	80 × 139	4.18
BR-07	7 × 7	3/32	2.4	70 × 121	4.18
BR-08	7 × 7	5/64	2	100 × 173	3.17
BR-09	7 × 7	5/64	2	90 × 156	3.17
BR-10	7 × 7	5/64	2	80 × 139	3.17
BR-11	7 × 7	5/64	2	70 × 121	3.17
BR-12	7 × 7	1/16	1.6	80 × 139	2.17
BR-13	7 × 7	1/16	1.6	70 × 121	2.17
BR-14	7 × 7	1/16	1.6	60 × 104	2.17
BR-15	7 × 7	1/16	1.6	51 × 87	2.17
BR-16	7 × 7	3/64	1.2	80 × 139	1.22
BR-17	7 × 7	3/64	1.2	60 × 104	1.22
BR-18	7 × 7	3/64	1.2	50 × 87	1.22
BR-19	7 × 7	3/64	1.2	40 × 69	1.22

Specifications can be customized according to customer needs.

Feature:

1.High strength, strong toughness, free-angles curving and fold,it is discreet and portable.
2. Lightweight, high-strength, never rust, softness.
3. Anti-corrosive, resist the rust, can be repeated use.
4. Impact resistance, breaking force, the overall structure of the rugged life of more than 30 years
5. The mesh size and diameter can be modif

Application

1.Slope Protection Rope Mesh
Slope protection rope mesh has enough intercept strength to prevent the rocks from slope falling onto road, railway, expressway or other structures. Instead, rocks will fall to the foot of slope behind the rope mesh.

2.Zoo Mesh
Stainless steel rope zoo mesh has diamond-shaped openings and high strength, which can protect visitors from being damaged. Therefore, visitors can enjoy the animals at a close distance free of danger. What's more, it can protect animals from being hurt.

3.Aviary Netting
The mesh size and opening size of stainless steel rope mesh can be modified. So it can provide enough space and create a natural environment for birds to make them live comfortably.

4. Green Wall
Stainless steel rope mesh is resistant to corrosion and rust even though it is exposed to sun directly. And it can make the green wall with green plants. Green wall can regulate the temperature of the building and it can protect the building wall.

5. Suspension Bridge Railing Mesh
Stainless steel rope mesh is also mainly used in the suspension bridge railing. It can increase the safety performance of suspension bridges and ensure the safety of passers.

6. Balustrade Mesh
Stainless steel rope mesh is also used for the balustrade of stair or balcony. It can make the stair grand, beautiful and safer.

Package

1. Use bag or bottle packaging
2. Pack the carton
3. Pack the wooden box
